CNC Dust Collection Setup Guide 2026: Complete System for Indian Hobbyists

Why Dust Collection Matters for CNC

If you own a CNC router, dust collection is not optional – it is a health and equipment requirement. Wood dust is a confirmed carcinogen per OSHA, and CNC machines produce far more dust than handheld tools because they run continuously for hours, cutting aggressively with high-speed tools that pulverize rather than chip material. Fine airborne particles cause nasal cancer, lung disease, and asthma with prolonged exposure.

Beyond health, dust infiltration damages spindle bearings, clogs electronics cooling fans, and contaminates linear rails and ball screws. A proper dust collection system pays for itself through reduced machine maintenance alone. For Indian CNC hobbyists running machines from 3018s to 6040 routers, the good news is that an effective system can be built for Rs 12,000-22,000.

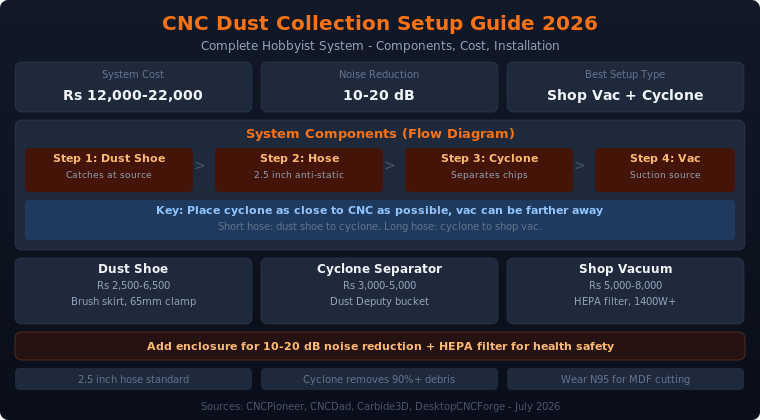

The Four Essential Components

1. Dust Shoe (Rs 2,500-6,500)

A dust shoe (also called a dust boot) is a shroud that surrounds your router bit and connects to a vacuum hose. Bristles or rubber strips on the bottom create a seal against the workpiece surface, trapping dust as it is generated. This is the single most important component – without a dust shoe, even the most powerful vacuum will not catch chips at the source.

Key considerations:

• Must match your spindle/router mount diameter (e.g., 65mm for common spindles, 69mm for DeWalt 611 router)
• Brush skirt type is preferred – it maintains contact with uneven surfaces
• Clear polycarbonate construction allows visibility of the cutting tool
• Easy removal for tool changes – magnetic attachments are ideal

2. Vacuum Hose – 2.5 Inch (Rs 1,200-2,000)

Standard 2.5 inch (63mm) diameter flexible PVC hose is the standard for CNC dust collection. It is wide enough to handle chips without clogging and narrow enough to maintain good airflow velocity.

Anti-static hoses are strongly recommended. Static electricity builds up as chips and dust move through plastic hoses, and discharges can reach the CNC controller board, causing crashes or lost steps. A grounded anti-static hose costs more but protects your machine.

Hose routing tips:

• Leave enough slack for the gantry to reach all four corners of the cutting area
• Avoid sharp 90-degree bends – every turn reduces airflow
• Keep the hose above the work area if possible
• Keep total run under 15 feet for effective suction

3. Cyclone Separator (Rs 3,000-5,000)

A cyclone separator is arguably the single most impactful upgrade you can make. It sits between the dust shoe and the shop vac. Dusty air enters the cyclone tangentially and spins; centrifugal force throws heavy particles to the outside wall, where they drop into a collection bucket. Only the fine dust continues to the shop vac filter. The cyclone removes 90%+ of material before it reaches the vacuum, extending filter life and maintaining consistent suction – a cut-quality fix as much as a health one.

Placement is critical: Put the cyclone as close to the CNC as possible, not next to the shop vac. You want the heavy debris to separate before traveling through a long hose run. Short hose from dust shoe to cyclone, longer hose from cyclone to shop vac.

4. Shop Vacuum (Rs 5,000-8,000)

For most hobbyist CNC setups, a shop vac is a better choice than a large dust collector. The reason: a dust shoe has a small opening of about 1.5 to 2.5 inches diameter. You need strong suction through that narrow port. Shop vacs excel at this, while dust collectors move high volumes of air at lower pressure.

What to look for:

• HEPA-rated filter (traps 99.97% of 0.3 micron particles) – the single most important health investment
• 1400W or higher motor power
• Filter bag inside the shop vac (even with a cyclone) – catches medium dust that slips past
• Compact enough to fit under the workbench

CNC Enclosure for Dust and Noise Control

An enclosure around your CNC machine serves two critical purposes: containing dust and reducing noise. A well-built enclosure can reduce noise by 10-20 dB (from 80 dB to 60-70 dB), making overnight or apartment CNC operation feasible.

DIY enclosure materials (Rs 5,000-15,000):

• MDF or plywood walls for sound blocking
• Polycarbonate or acrylic windows for visibility
• Acoustic foam lining for sound absorption
• Weatherstripping to seal gaps
• LED strip lighting inside for visibility
• Casters for mobility
• Baffled intake vents at the bottom for airflow without noise leakage

For apartment users, combine the enclosure with the dust collection system and a cyclone separator, and CNC operation becomes feasible even in shared living spaces.

Complete System Recommendation by Budget

Entry-Level Setup (Rs 12,000-14,000)

• Machine-specific dust shoe: Rs 2,500-3,000
• 2.5 inch hose + reducers: Rs 1,200
• Cyclone separator (DIY bucket type): Rs 3,000
• Shop vac with HEPA filter: Rs 5,000-6,000
• Total: Rs 11,700-13,200

Mid-Range Setup (Rs 18,000-22,000)

• Branded dust shoe (Suckit, PwnCNC, or compatible): Rs 5,000-6,500
• Anti-static 2.5 inch hose: Rs 2,000
• Branded cyclone (Dust Deputy type): Rs 4,000-5,000
• HEPA shop vac with filter bag: Rs 7,000-8,000
• Plywood enclosure with polycarbonate windows: Rs 3,000-4,000
• Total: Rs 21,000-25,500

Health and Safety Practices

• Always wear N95 or N99 respiratory protection during CNC operation – cloth and surgical masks provide zero protection against fine dust
• Use a box fan with a furnace filter to capture suspended particles after cutting
• Ventilate the workspace – open doors or windows for air exchange
• MDF dust is particularly hazardous due to formaldehyde binders – take extra precautions
• Double up hearing protection (foam plugs under earmuffs) for extended sessions

Frequently Asked Questions

Is a shop vac or dust collector better for CNC?

For most hobbyists with a single CNC using a dust shoe, a shop vac is better. The small opening of a dust shoe needs high suction, which shop vacs provide. Dust collectors are better for multi-tool shops where you need to serve a table saw, planer, and CNC from one system.

How much noise reduction can I expect from an enclosure?

A basic MDF/plywood enclosure with acoustic foam lining typically reduces noise by 10-20 dB. Advanced builds with mass-loaded vinyl, sealed gaps, and baffled vents can achieve 25-30+ dB reduction – enough to run evening sessions in apartments.

Do I need an anti-static hose?

Strongly recommended. Static buildup in plastic hoses can discharge into the CNC controller, causing crashes, lost steps, or damage. Anti-static hoses are grounded to the machine frame and eliminate this risk.

Can I run a desktop CNC in an apartment?

Yes, with the right setup. A dust shoe + cyclone + HEPA shop vac handles dust, and an enclosure brings noise to apartment-friendly levels. Many hobbyists successfully run 3018 and 6040 machines in apartments with this combination.
