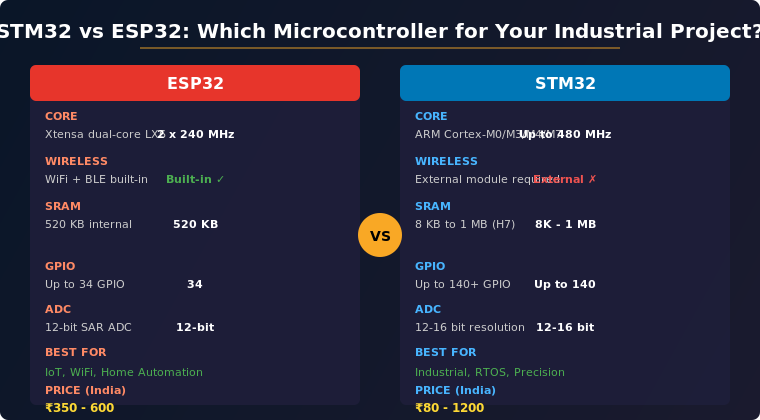

STM32 vs ESP32: Choosing the Right Microcontroller for Your Industrial Project in 2026

Key Takeaway: For IoT and wireless projects with cloud connectivity, choose the ESP32 for its built-in WiFi/BLE and ease of use. For industrial applications requiring real-time control, deterministic timing, high GPIO count, or advanced peripheral interfaces, choose the STM32 family. Each excels in different domains — selecting the right MCU can save weeks of development time and thousands in BOM costs.

Introduction: The Two Giants of Embedded Development

When starting any embedded systems project in 2026, the first question every engineer faces is: STM32 or ESP32? Both families dominate their respective domains, but choosing incorrectly can lead to costly hardware revisions, missed deadlines, or performance bottlenecks that surface months into development.

The ESP32 from Espressif Systems has become the go-to choice for IoT applications thanks to its integrated WiFi and Bluetooth, affordable price point, and Arduino IDE compatibility. Meanwhile, STMicroelectronics’ STM32 family — spanning Cortex-M0, M3, M4, and M7 cores — offers unmatched scalability, real-time performance, and industrial-grade peripheral sets ranging from budget-conscious F0 chips to powerhouse H7 processors.

In this comprehensive comparison, we evaluate architecture, wireless capability, real-time performance, development ecosystem, and cost to help you make the right choice for your specific application.

Architecture and Processing Power

ESP32: Dual-Core Xtensa

The ESP32 uses a dual-core Tensilica Xtensa LX6 microprocessor running at up to 240 MHz. While not ARM-based, this architecture has proven capable for most IoT workloads. The dual cores allow task separation — for example, one core handling WiFi/Bluetooth protocol stacks while the other runs your application code. This architectural choice works well for connected applications but falls short in deterministic real-time control scenarios.

STM32: ARM Cortex Scalability

The STM32 family’s key advantage is its breadth. With over 1200 variants across multiple series (STM32F0, F1, F3, F4, G0, G4, H7, U5, etc.), you can scale from an 8 KB SRAM Cortex-M0 chip costing under ₹80 to a 1 MB SRAM dual-core Cortex-M7 running at 480 MHz for under ₹1200. This scalability means you can prototype with a high-end STM32 Nucleo board and migrate to a cheaper variant for production — a significant advantage over ESP32’s fixed architecture.

Wireless Connectivity

This is where the ESP32 clearly differentiates itself. Built-in 802.11 b/g/n WiFi plus Bluetooth 4.2 (or 5.0 on newer revisions) makes it ideal for cloud-connected applications. You don’t need external modules, which simplifies PCB design and reduces BOM. The ESP32 can serve as a web server, MQTT client, or Bluetooth gateway right out of the box.

The STM32 has no built-in wireless connectivity in its general-purpose lineup. While ST does offer wireless-focused variants like the STM32WB series (with Bluetooth) and STM32WL (with LoRa), the vast majority of STM32 chips require external WiFi modules like the ESP8266 or ESP32 as a co-processor, an external Bluetooth module, or a radio module for industrial wireless protocols.

Real-Time Performance and Industrial Control

Winner: STM32, decisively. The STM32 architecture was designed from the ground up for deterministic real-time operation. Key advantages include:

• Advanced Timers: STM32 timers support encoder input, PWM generation with dead-time insertion, hall sensor interface, and quadrature decoding — essential for motor control
• DMA Controllers: Multi-stream DMA with FIFO for zero-CPU-overhead peripheral transfers
• RTOS Support: FreeRTOS, ThreadX, and other RTOS run with predictable scheduling on STM32
• Floating Point Unit: Cortex-M4 and M7 have hardware FPU for signal processing and control algorithms
• CAN/FD: Native CAN 2.0 and CAN-FD support for industrial and automotive networks

The ESP32 can run FreeRTOS and handle basic control loops, but its WiFi stack can introduce unpredictable latency. For motor control, CNC, PID loops, or any application requiring microsecond-level timing, the STM32 is the clear choice.

Development Ecosystem

ESP32 Ecosystem

The ESP32 benefits from the Arduino ecosystem, making it accessible to hobbyists and rapid prototypers. Espressif’s official ESP-IDF framework provides professional-grade development with FreeRTOS integration. PlatformIO supports both frameworks. The community is vast, with thousands of libraries for sensors, displays, and cloud connectivity.

STM32 Ecosystem

The STM32 ecosystem is more complex but more powerful. Key tools include:

• STM32CubeMX: Graphical pin configuration and code generation tool
• STM32CubeIDE: Full-featured IDE based on Eclipse with GCC toolchain
• HAL and LL Libraries: Hardware Abstraction Layer and Low-Layer APIs
• STM32CubeProgrammer: Flash programming and debugging

The learning curve is steeper than ESP32 development, but the resulting code is typically more efficient, more maintainable, and better suited to production environments.

Cost Analysis for Indian Market

When to Choose Which?

Choose ESP32 When:

• Your product needs WiFi or Bluetooth connectivity
• You’re prototyping an IoT sensor or smart home device
• You need cloud connectivity (MQTT, HTTP, WebSocket)
• Development speed is more important than real-time precision
• You want Arduino IDE compatibility for rapid iteration

Choose STM32 When:

• You’re building industrial control systems or motor drives
• Deterministic timing and RTOS performance are critical
• You need advanced peripherals (CAN, USB OTG, Ethernet MAC)
• Your application requires high-resolution ADC or DAC
• You’re designing for production scalability across multiple SKUs

Hybrid Approach: Best of Both Worlds

Many industrial products in 2026 use a hybrid architecture: an STM32 handles real-time control, sensor processing, and safety-critical functions while an ESP32 (or ESP8266) serves as a communication co-processor for WiFi connectivity. This approach, while increasing BOM cost by about ₹300-500, delivers industrial-grade performance with cloud connectivity — the best of both worlds.

FAQ

Can ESP32 replace STM32 in industrial applications?

No. While the ESP32 can handle basic control tasks, it lacks the deterministic timing, advanced timer features, and industrial peripheral set that STM32 offers for factory automation and motion control.

Which is easier for beginners?

The ESP32 with Arduino IDE is significantly easier for beginners. STM32 requires understanding of Cortex-M architecture, CubeMX configuration, and HAL libraries — a steeper learning curve.

Can STM32 connect to WiFi?

Not directly in the standard lineup. You’ll need an external ESP8266/ESP32 module or use STM32WB series for Bluetooth. For WiFi, the ESP32-as-co-processor approach is common.

Which has better power efficiency?

STM32 generally wins in deep sleep power consumption. The STM32L series (ultra-low-power) can achieve sub-microamp sleep currents, while ESP32’s deep sleep consumes around 5-10 µA.
