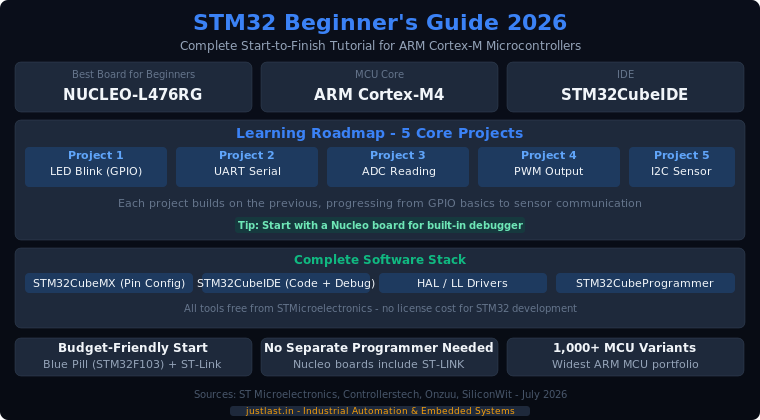

STM32 Beginner’s Guide 2026: Complete Step-by-Step Tutorial from Zero to Blinking LED with STM32CubeIDE

Why Learn STM32 in 2026?

The STM32 family from STMicroelectronics is the most widely used 32-bit ARM Cortex-M microcontroller line in the world, with over 1,000 part numbers spanning automotive, industrial, medical, and consumer markets. For embedded systems engineers, learning STM32 is not optional – it is essential. The ecosystem includes everything from entry-level Cortex-M0 chips costing under Rs 100 to high-end Cortex-M7 devices running at over 400 MHz.

In 2026, STM32 development has become more beginner-friendly than ever. The free STM32CubeIDE (based on Eclipse) with integrated STM32CubeMX configuration tool gives newcomers a complete, no-cost development environment. The HAL (Hardware Abstraction Layer) library and LL (Low-Layer) drivers provide both ease of use and performance options.

Choosing Your First STM32 Board

Best for Complete Beginners: NUCLEO-L476RG

The NUCLEO-L476RG is the strongest recommendation for absolute beginners. It uses the STM32L476RGT6 microcontroller with an Arm Cortex-M4 core with FPU running at 80 MHz, 1 MB flash, and 128 KB SRAM. The board includes an onboard ST-LINK debugger/programmer, a user LED, a user button, Arduino Uno V3-compatible connectors, and ST morpho headers. You need only a USB cable to start programming – no separate debug probe required. Cost: approximately Rs 2,000-2,500 in India.

Budget Option: Blue Pill (STM32F103C8T6)

The Blue Pill board uses the STM32F103C8T6 (Cortex-M3, 72 MHz, 64 KB flash, 20 KB SRAM). At under Rs 400 for the board and another Rs 300 for an ST-Link V2 clone, it is the cheapest entry point into STM32 development. The trade-off: no onboard debugger, less flash/RAM, and the 5V-tolerant quirks of the “C8” variant. However, the skills you learn transfer directly to more capable STM32 chips.

Setting Up the STM32 Software Ecosystem

The STM32 development workflow relies on three free tools from STMicroelectronics:

• STM32CubeMX: A graphical pin and peripheral configuration tool. You select your MCU or board, configure pins, set up the clock tree, enable peripherals (USART, SPI, I2C, ADC, timers), and generate initial C code. This eliminates the tedious setup work and prevents clock configuration errors that plague beginners.
• STM32CubeIDE: A full Eclipse-based IDE with editor, compiler (arm-none-eabi-gcc), debugger (OpenOCD), and STM32CubeMX integration. You write code in the “USER CODE” sections that persist across code regeneration.
• STM32CubeProgrammer: A standalone tool for flashing firmware via SWD, UART, or DFU. Useful for production programming and board recovery.

Project 1: LED Blink (GPIO Basics)

This is the embedded equivalent of “Hello, World.” It teaches GPIO configuration, clock setup, and the project creation workflow.

Step-by-step:

1. Open STM32CubeMX, select “Board Selector” and choose NUCLEO-L476RG
2. Go to Pinout view – PA5 is already configured as the green user LED
3. In RCC settings, the HSE clock source defaults to bypass mode (the ST-LINK provides the clock)
4. In Clock Configuration tab, set HCLK to 80 MHz, confirm PLL settings
5. Enable SYS > Debug > Serial Wire (keeps SWD active after code runs)
6. Go to Project Manager, name your project, select STM32CubeIDE as toolchain
7. Generate code and open in CubeIDE

In the generated main.c, find the /* USER CODE BEGIN 3 */ section inside the while loop and add:

HAL_GPIO_TogglePin(GPIOA, GPIO_PIN_5);
HAL_Delay(1000);

For independent ON/OFF control:

HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);   // LED ON
HAL_Delay(500);
HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET); // LED OFF
HAL_Delay(2000);

Build with the hammer icon and flash with the Run button. The ST-LINK handles programming and debugging. You should see the green LED blink at your configured rate.

Project 2: UART Serial Communication

UART (Universal Asynchronous Receiver/Transmitter) is the simplest way to get data out of your microcontroller for debugging and communication. The NUCLEO-L476RG’s ST-LINK creates a virtual COM port over USB – connect to it with any serial terminal (PuTTY, Tera Term, or Arduino IDE Serial Monitor).

In CubeMX:

• Select USART2 in Pinout view (it is connected to the ST-LINK VCP by default)
• Set mode to Asynchronous
• Default 115200 baud, 8 data bits, no parity, 1 stop bit works well

Code for blocking transmit:

char msg[] = "Hello from STM32!\r\n";
HAL_UART_Transmit(&huart2, (uint8_t*)msg, strlen(msg), HAL_MAX_DELAY);

For interrupt-based transmission (non-blocking, frees the CPU), use HAL_UART_Transmit_IT(). For DMA-based transmission, configure a DMA channel in CubeMX and use HAL_UART_Transmit_DMA().

Project 3: ADC – Reading Analog Voltages

The built-in ADC (Analog-to-Digital Converter) reads analog voltages from sensors, potentiometers, and other analog sources. The STM32L476 has three ADCs with up to 16-bit resolution.

CubeMX configuration:

• Select ADC1, add channel (e.g., IN1 on pin PA1)
• Set resolution to 12 bits (4096 steps, 0-3.3V)
• Enable continuous conversion mode

Polling mode code:

HAL_ADC_Start(&hadc1);
if (HAL_ADC_PollForConversion(&hadc1, 100) == HAL_OK) {
    uint32_t adc_value = HAL_ADC_GetValue(&hadc1);
    float voltage = (adc_value / 4095.0f) * 3.3f;
}

Polling is simple but blocks the CPU. For efficient code, use ADC with interrupt or DMA mode, which leaves the CPU free to handle other tasks while the conversion runs in the background.

Project 4: PWM Output with Timers

Pulse Width Modulation (PWM) is essential for controlling servo motors, LED brightness, motor speed, and generating analog-like signals from digital pins.

CubeMX configuration:

• Select TIM2 and set Channel 1 to PWM Generation CH1
• Set Prescaler and Period for desired frequency (e.g., 1 kHz: Prescaler=79, Period=999 at 80 MHz)
• Set Pulse to 500 for 50% duty cycle

Code:

HAL_TIM_PWM_Start(&htim2, TIM_CHANNEL_1);
__HAL_TIM_SET_COMPARE(&htim2, TIM_CHANNEL_1, 500);

The duty cycle can be changed at runtime by calling __HAL_TIM_SET_COMPARE with a new value between 0 and the Period value, enabling smooth servo control or LED fading effects.

Project 5: I2C Sensor Communication

I2C (Inter-Integrated Circuit) is a two-wire protocol for connecting sensors, displays, and other peripherals. Most environmental sensors (temperature, humidity, pressure) use I2C.

Hal library I2C read sequence:

uint8_t data[2];
HAL_I2C_Master_Transmit(&hi2c1, (BME280_ADDR << 1), &reg, 1, 100);
HAL_I2C_Master_Receive(&hi2c1, (BME280_ADDR << 1), data, 2, 100);
int16_t temp_raw = (data[0] << 8) | data[1];
float temp_c = temp_raw / 100.0f;

Start with the BME280 or SHT31 sensor – both are well-documented, inexpensive, and produce immediately useful data for weather station or environmental monitoring projects.

From Projects to Real Applications

Once you have completed these five projects, you have the foundation to build real embedded applications. Combine them: read temperature from an I2C sensor (Project 5), display it on a serial terminal (Project 2), and trigger a fan with PWM (Project 4) when temperature exceeds a threshold.

For production firmware, explore FreeRTOS on STM32 for multitasking, low-power modes for battery operation, DMA for efficient data transfer, and the STM32 Hardware Abstraction Layer reference manuals for register-level understanding.

Common Beginner Mistakes

• Clock configuration errors: Incorrect RCC settings (HSE vs HSI, PLL multipliers) are the most common source of “code doesn’t run” issues. Always verify your clock tree in CubeMX before generating code.
• Lost SWD debug: If you disable SWD pins in GPIO configuration, the ST-LINK cannot communicate. Keep SYS > Debug set to Serial Wire.
• Code outside USER CODE sections: Code written outside /* USER CODE BEGIN */ blocks will be overwritten if you regenerate from CubeMX.
• Missing pull-up resistors on I2C: I2C requires external pull-up resistors (typically 4.7k ohm) on SDA and SCL lines.

Frequently Asked Questions

Which STM32 board is best for beginners in India?

The NUCLEO-L476RG is the best choice for beginners due to its onboard ST-LINK debugger and extensive tutorial support. It costs around Rs 2,000-2,500 from Indian distributors like Robu.in or Quartz Components.

Do I need to buy a separate programmer?

No, if you choose a Nucleo board. Nucleo boards include an ST-LINK debugger built in. If you choose a Blue Pill board, you will need an ST-Link V2 clone (approximately Rs 300).

Is the STM32CubeIDE free?

Yes, STM32CubeIDE is completely free with no license restrictions. STM32CubeMX and STM32CubeProgrammer are also free. The entire STM32 software ecosystem has no licensing cost.

Can I use Arduino IDE for STM32?

Yes, through the STM32duino project (STM32 core for Arduino IDE). This is a valid path for quick prototyping if you already know Arduino, but the official STM32CubeIDE provides much better debugging and peripheral configuration tools.
